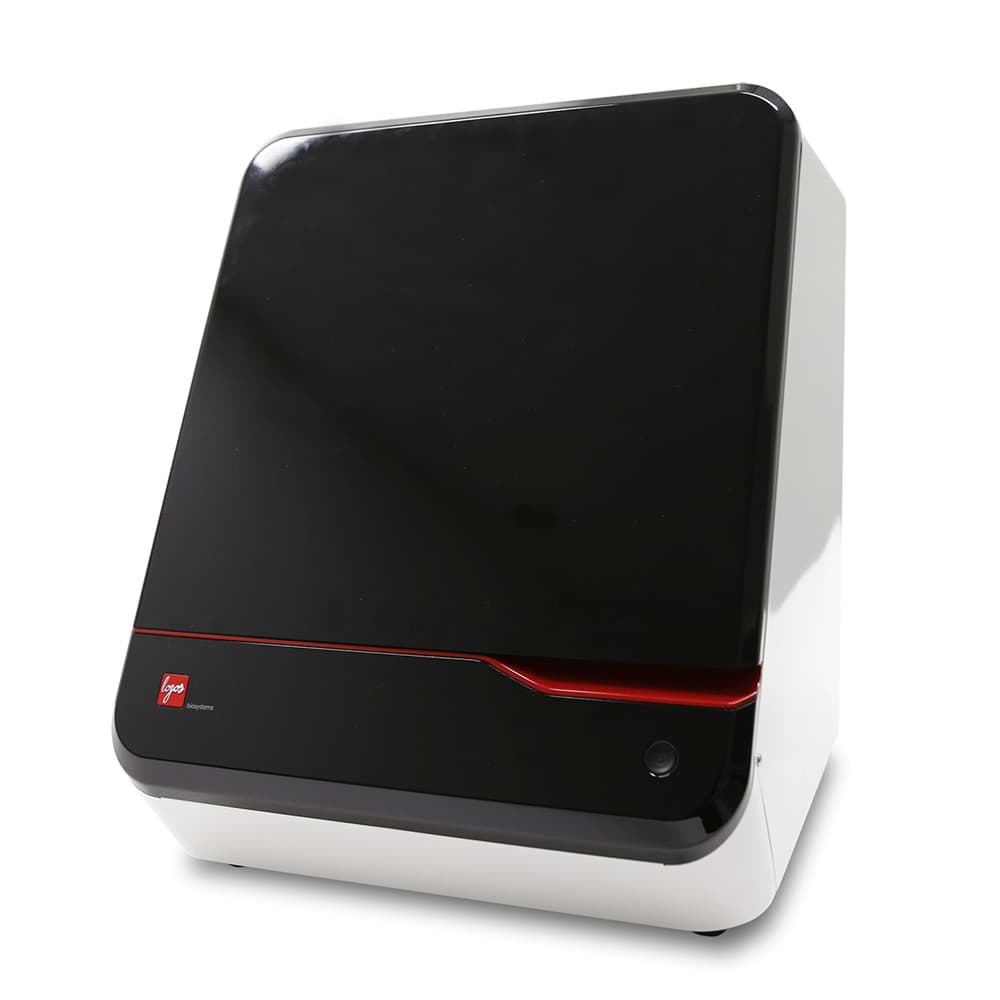

CELENA X High Content Imaging System (Basic package)
Learn how to use this product

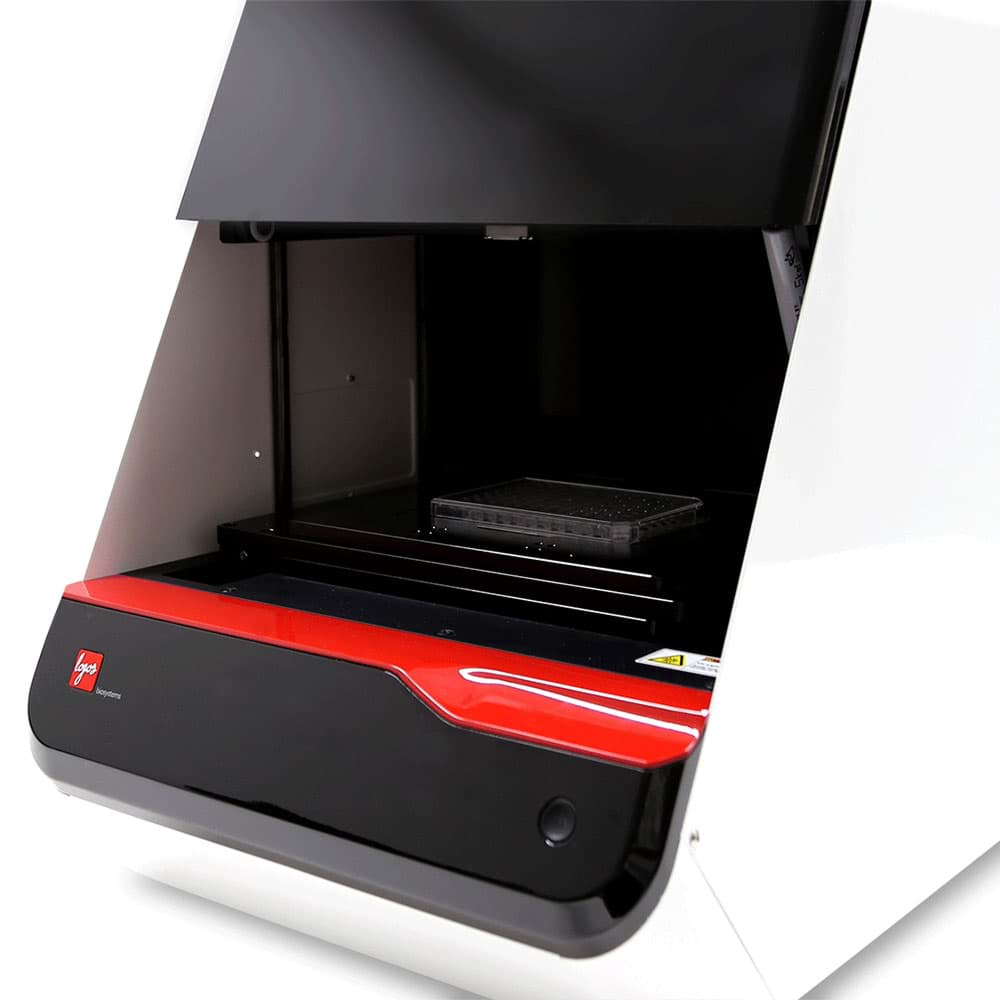

Need indisputable live cell time-lapse images? The CELENA® X is the only system for high-throughput images with great focus for each well over a long period. No signal fading and cells remain healthy. The fully automated plate and slide imaging with motorized XYZ stage enables automated vessel handling and scanning. For live cell imaging, the onstage incubation system, composed of an environmental chamber, temperature controller, and a gas mixer, supports various live cell imaging applications.

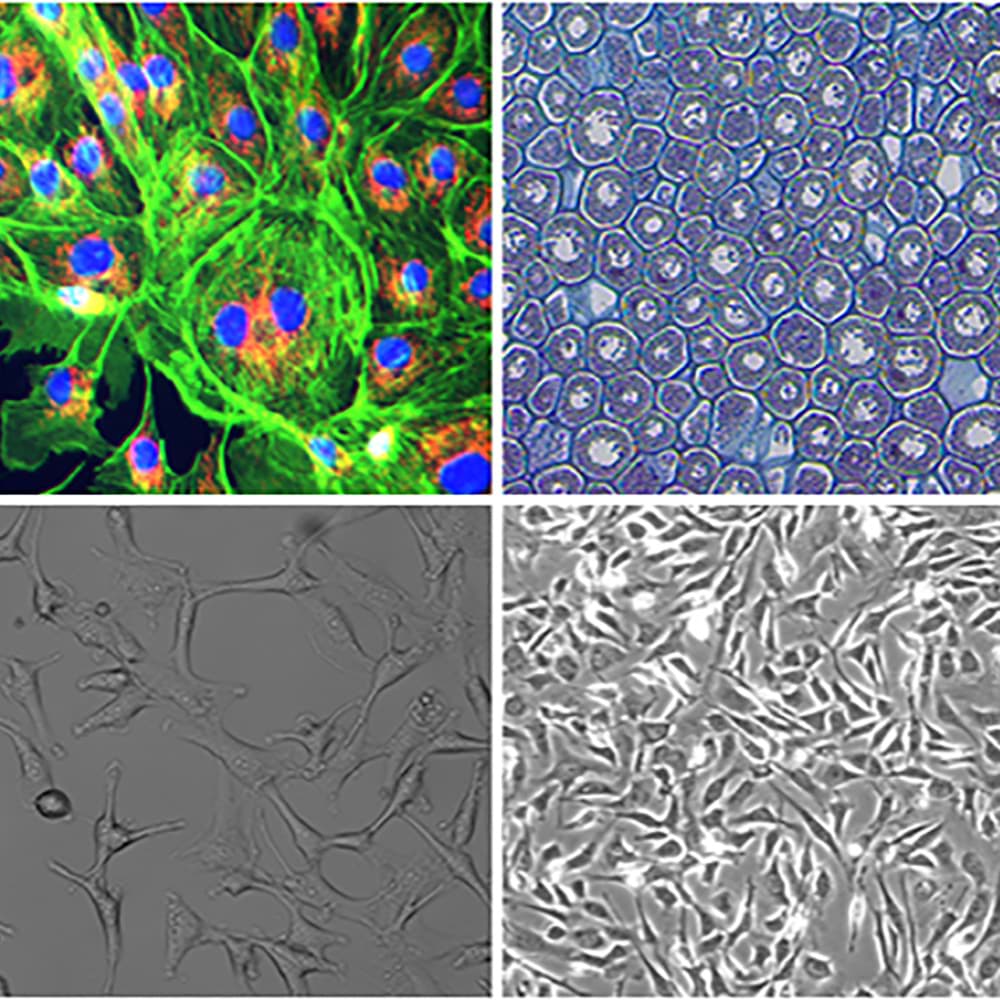

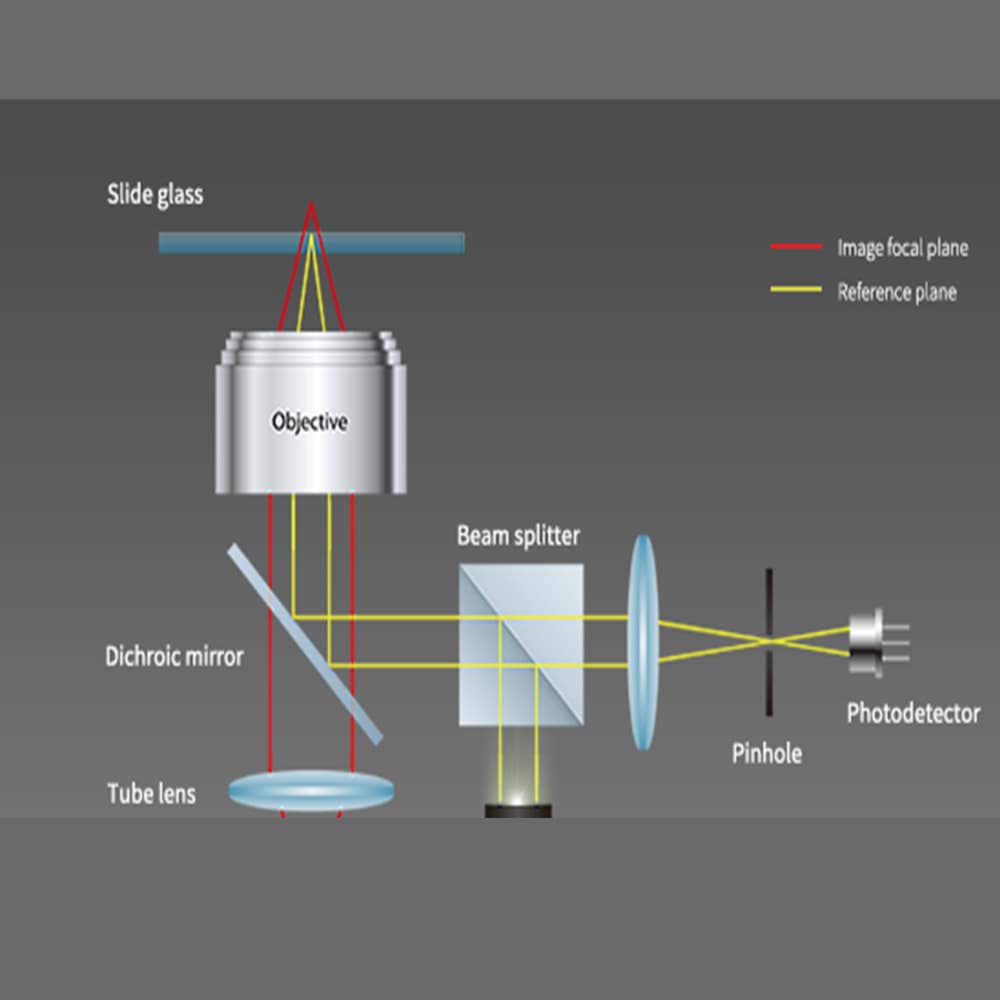

You can precisely control the temperature (ambient up to 55°C), humidity (22 - 99%), CO₂ levels (0.1 - 2%), and O₂ levels (0 - 21%). Monitor live cells with the time-lapse function or the growth monitor. Minimize phototoxicity and photobleaching with the laser autofocus. You can capture images in multicolor fluorescence, brightfield, color brightfield, and phase contrast. Or customize the CELENA® X to your needs.

Quantitative data analysis is done in a wink with the CELENA® X intuitive Cell Analyzer software to provide you with reproducible data for high-throughput imaging. The easy-to-use interface simplifies setup, imaging protocols, and seamless integration of the imaging process. From imaging to image analysis to data analysis, create your workflow. The versatility of vessel holders, objects, and led cubes allows abundant applications with the CELENA® X, like cytotoxicity, 3D cell models, Stiching, calcium signaling, apoptosis, wound healing cell cycle, and many more.
