What type of PCR system are you looking for?

Select the PCR system that matches your needs

PCR systems are available abundantly. But ever wondered which system best suits your need? Have a look at our selection guide here.

The thermocycler that colored many labs red

Never in doubt, if your PCR runs smooth, the Biometra TAdvanced Thermocyclers have proven their worth on many lab benches for decades now. Don't be the last one frustrating over bad PCR runs and choose the system that best suits you.

BASIC MODEL

TOne

Best value for money

Block

Aluminum
Special alloy

Capacity

   Max. heating rate: 4°C/sec
   Fixed 96-well block
   Gradient option
   Program memory 350 programs
   User directory 30 users
   Dimensions system (WxDxH in mm): 260x210x430

Plastics

Temperature settings

   Range: 3°C-99°C
   Control accuracy:+/- 0.1°C
   Lid temperature range: 30°C-110°C
   Gradient range: 20°C-99°C

Temperature uniformity

at 55°C after 15 sec: +/- 0.20°C

Recommended applications

   Personal system
   Routine-use
   Budget-friendly
   Research settings

Download brochure

HIGH-END

TAdvanced

Routine use

Block

Aluminum
Special alloy

Capacity

    Max. heating rate: 6°C/sec
   Max.heating rate 384-block: 46°C/sec
    Changeable 96-well and Twinblock
   Gradient option
    Program memory 350 programs
    User directory 30users
   Dimensions(WxDxH in mm): 277x457x264

Plastics

    96-wellplates
   384-wellplates
    0.2 ml tubes
    8-well 0.2ml tubes
   12-well 0.2mltubes
    2x48 well plates (twin block)

Temperature settings

    Range:3°C-99°C
   Controlaccuracy: +/- 0.1°C
    Lid temperature range: 30°C-110°C
   Gradient range: 20°C-99°C

Temperature uniformity

at 55°C after 15 sec: +/- 0.20°C

Recommended applications

   Advanced user comfort
   Routine use
   Flexibility in plastics use

Download brochure

EXCELLENCE

TAdvanced Silver

Ultra-fast

Block

Silver block
Gold-coated

Capacity

    Max. heating rate: 8°C/sec
    Changeable96-well and Twin block
    Gradient option
    Program memory 350 programs
    User directory 30 users
    Dimensions (WxDxH in mm): 277x457x264

Plastics

    96-well plates
    384-wellplates
    0.2 ml tubes
    8-well 0.2ml tubes
    12-well 0.2 mltubes
    2x48 well plates (twin block)

Temperature settings

    Range: 3°C-99°C
    Controlaccuracy: +/- 0.1°C
    Lid temperature range: 30°C-110°C
    Gradient range: 4°C-99°C

Temperature uniformity

at 55°C after 15 sec: +/- 0.15°C

Recommended applications

    Advanced user comfort
   Ultra-fast heating & cooling
    High-end applications

Download brochure

VERSATILITY

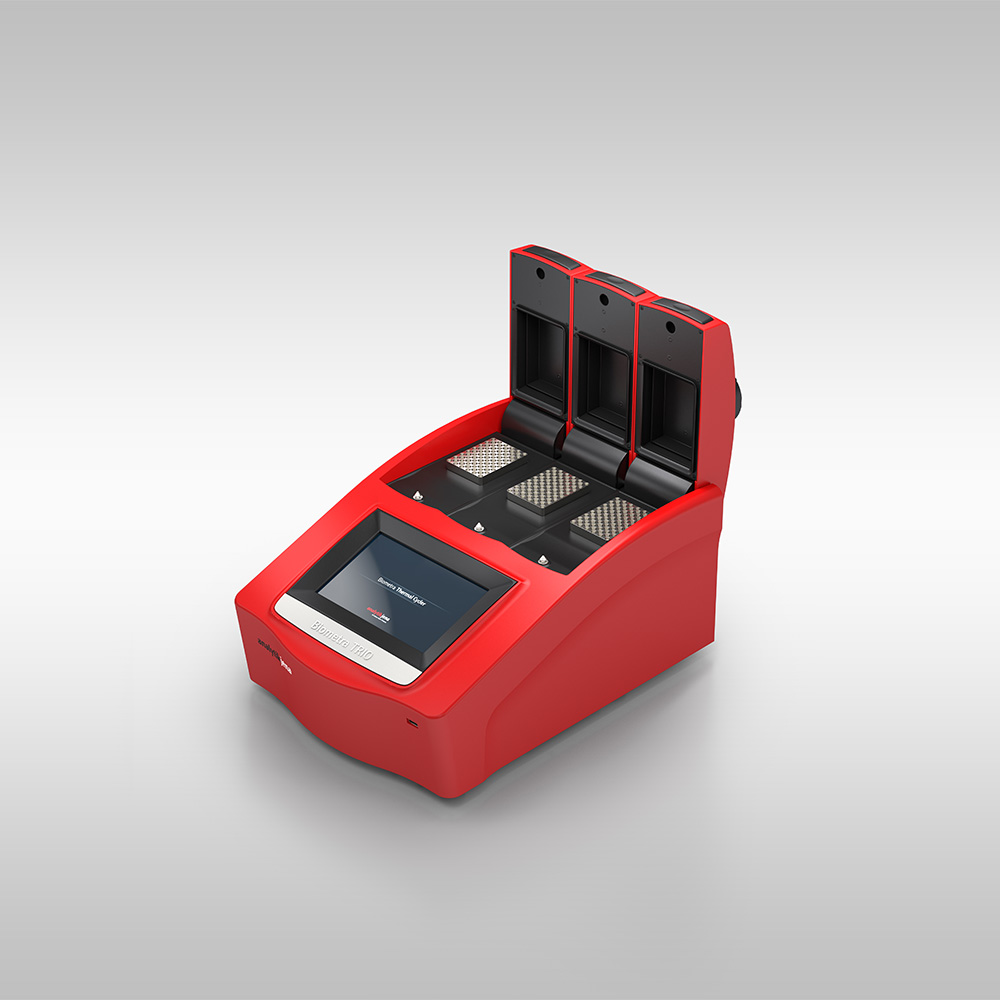

TRIO

Independent blocks

Block

Aluminum
Special alloy

Capacity

    Max heating rate 48 block: 5°C/sec
    Max heating rate 30 block: 4°C/sec
    Max heating rate combi block: 3°C/sec
    48-well, 30-well, or combi block
    Program memory 350 programs
    User directory 30 users
    Dimensions system(WxDxH in mm): 300x410x250

Plastics

    0.2 ml tubes
    8-well 0.2ml tubes
    48-well plates
    0.5 ml tubes (30 block)

Temperature settings

    Range: 3°C-99°C
    Control accuracy: +/- 0.1°C
    Lid temperature range: 30°C-110°C

Temperature uniformity

at 55°C after 15 sec: +/- 0.20°C

Recommended applications

    Personal use system
    Routine use
    budget-friendly
    Research settings

Download brochure

Voordelen

Universal block

No more stuck to specific plastics Use the plastic of choice with the universal designed blocks

Temperature control

Trust the settings with the very precise block temparature control without outliers

Low maintenance

Don't worry about anything, the deutsche gründlichkeit results in high-quality hardware
